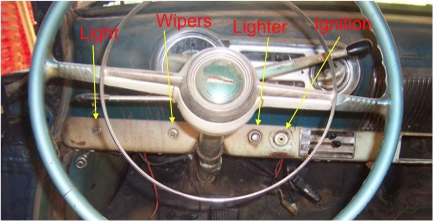

Tracing the wires means removing all of the dashboard instruments. The wiper switch is actually a valve. It also has a cable which opens the defroster vent.
